20kW Hybrid Solar Wechselrichter dreiphasig Niederspannung

SKU: 12185 | VT: SUN-20K-SG05LP3-EU-SM2

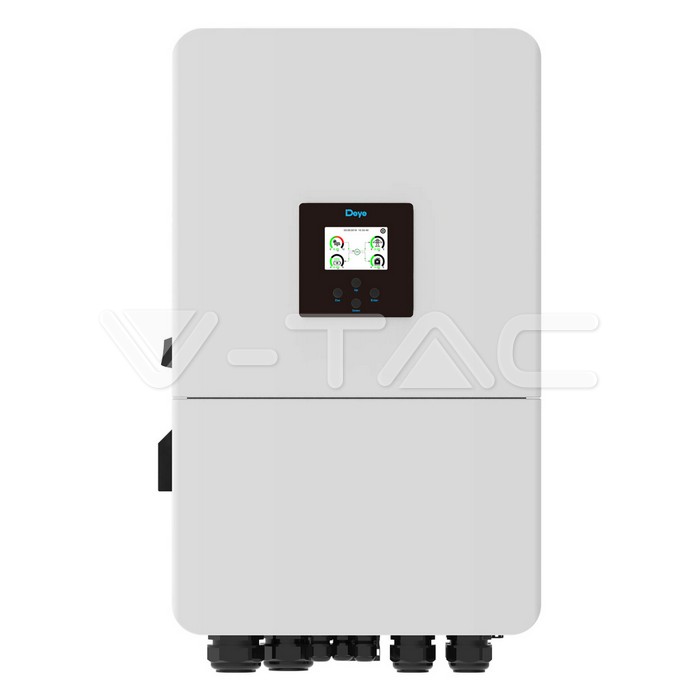

12185-2
12185-3

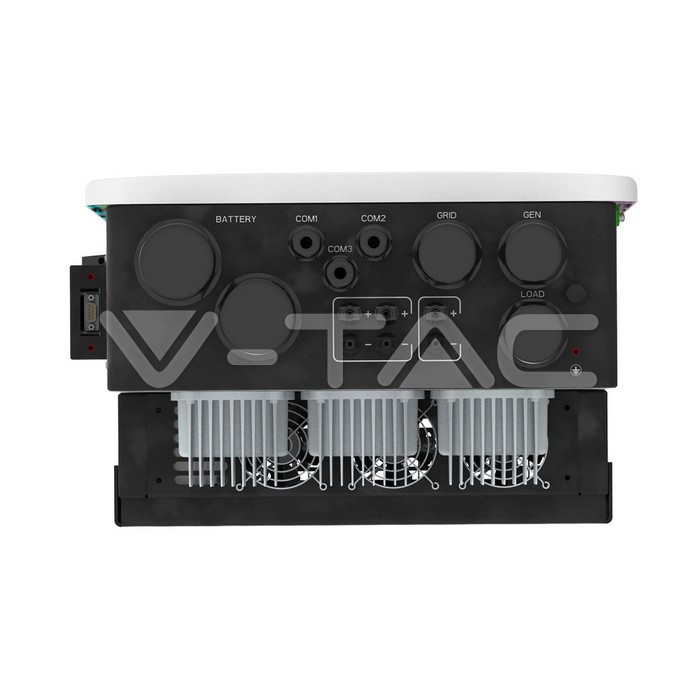

12185-4

Downloads
Technical Specifications
Manual
Declaration of Conformity
|
Certificate of Conformity
EMC License
LVD License
EN 50549
CEI 0-21
Warranty Conditions
Spezifikationen
Allgemeine Informationen
Elektrische Daten
Strom
  • Max. Operating PV Input Current (A): 36+36;
  • Max. Input Short-Circuit Current (A): 54+54;
  • Rated AC Input/Output Current (A): 30.4/29;
  • Max. AC Input/Output Current (A): 33.4/31.9
  • Max. Continuous AC Passthrough: 70A;
Leistung
  • Max. DC Input Power (W): 32000
  • Max. PV Access Power (W): 30000;
  • Rated AC Input/Output Active Power: 20000W;
  • Max. AC Input/Output Apparent Power (VA) 22000;
  • Peak Power (off-grid) (W): 2 times of rated power, 10s
Stromspannung
  • Rated PV Input Voltage: 550V;
  • MPPT Range: 160-650V;
  • Rated Input/Output Voltage/Range (V) 220/380V, 230/400V 0.85Un-1.1Un;
  • Start-up Voltage: 160V;
Frequenz
Rated Input/Output Grid Frequency/Range(Hz) 50/45-55, 60/55-65
Leistungsfaktor
0.8 leading to 0.8 lagging
Phase
Dreiphasig
Fähigkeiten
Arbeitsbedingungen
-40 to +60℃, >45℃ Derating
IP-Rate
IP65
Maße
Größe
456×750×268.5 mm (Excluding Connectors and Brackets)
Produktdaten
Bestellcode
12185
Produktcode
SUN-20K-SG05LP3-EU-SM2
Artikelgewicht
50.6 kg
Stück pro Packung
1
Zertifikate & Normen
Zertifizierung
IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2
IEC 61727, IEC 62116, CEI 0-21, EN 50549, NRS 097, RD 140, UNE 217002, OVE-Richtlinie R25, G99, VDE-AR-N 4105
Zusätzlich
Veröffentlichungsdatum
29.08.2024
Garantie
10 Jahre
Zusätzliche Information
  • Battery Type: Lead-acid or Lithium-ion
  • Battery Voltage Range (V): 40-60
  • Max. Charging Current (A): 350
  • Max. Discharging Current (A): 350
  • Charging Strategy for Li-ion Battery: Self-adaption to BMS
  • Number of Battery Input: 1
  • Grid Connection Form: 3L+N+PE
  • Type of Cooling: Intelligent Air Cooling
  • Max. Efficiency: 97.6%
  • MPPT Efficiency: >99%
  • Euro Efficiency: 97.0%
Marke
Deye
